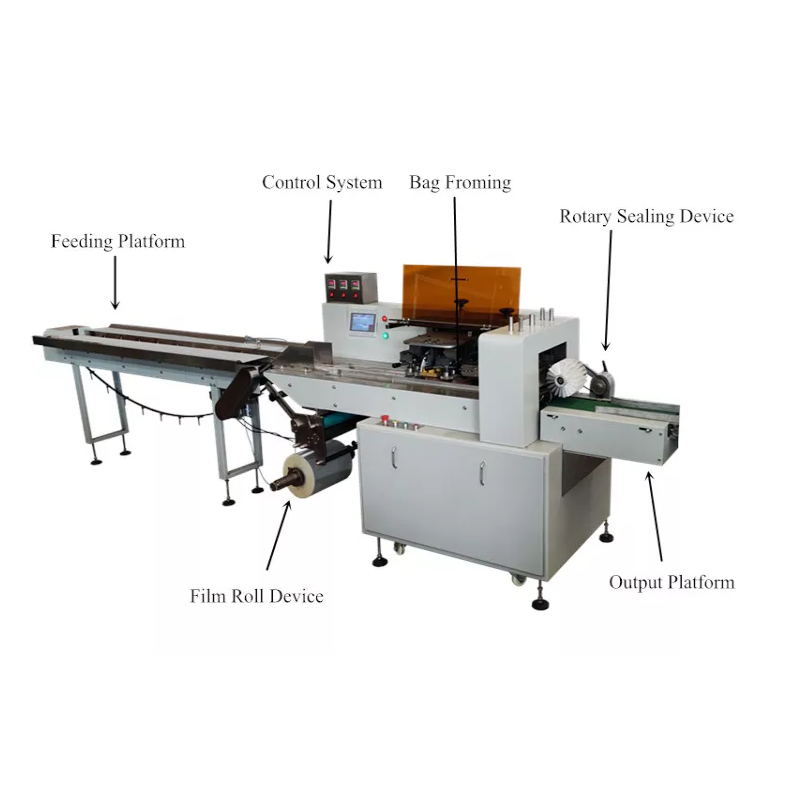

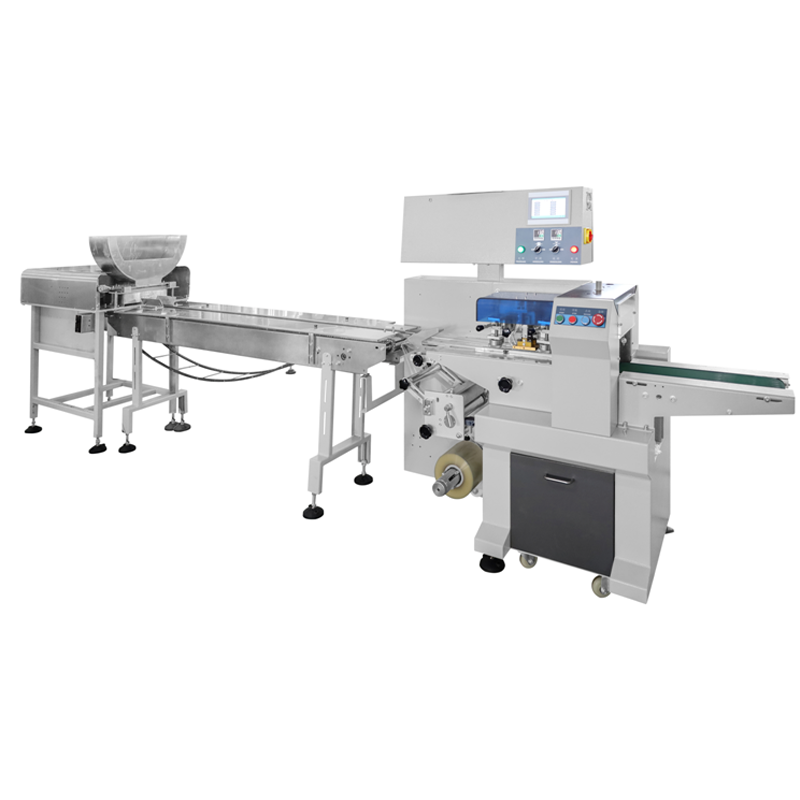

Auto Candle Packing Machine
Auto candle packing machine is mainly used for packaging candle,hardware, commodity and products with regular shape.
- GAOWAX
- China
- 15~30days
- 50 Sets per Month
- Information
Auto candle packing machine adopts mechanical and electrical integration design, and the control is programmed. The transmission system is simplified, the stability and reliability of the machine operation are improved, the noise of the machine operation is reduced, the service life is greatly extended, the failure rate is minimized, and the maintenance cost of the enterprise is reduced. Realize the functions of high efficiency, low loss, automatic protection and other functions of the packaging machine.
| Film width | Max340mm |
| Bag length | 140-400mm |
| Bag width | 30-160mm |
| Product height | Max.55mm |
| Packaging rate | 30-150bag/min |
| Film material | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP |
| Power | 220V 50/60Hz 2.4KW |
| Machine size | (L)3870×(W)785×(H)14750mm |
| Machine quality | About450kg |
Candle Packing Machine Main Fearures:
Dual frequency conversion control,bag length can be set and cut in one step,saving time and film.
Interface features easy and quick setting and operation.
Self failure diagnosis,clear failure diaplay.
High sensitivity photoelectric eye color tracing,numercial input of cutting sealing position for extra accuracy.
Temperature independent PID control,more suitable for packaging different materials.
Positioned stop function,without sticking knife or wasting film.
Simple driving system,reliable working,convenient maintenance.
All control is realized through software,easy for function adjusting and technical upgrade.
