Manual Pillar Candle Making Machine

Manual Candle Making Machine Purpose:

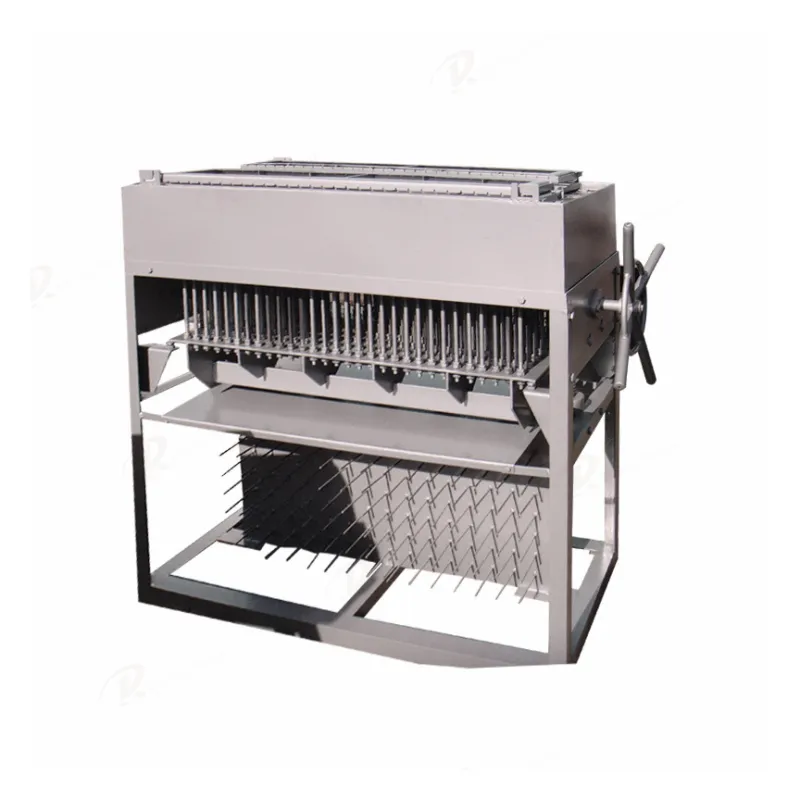

This product is a manual machine, It uses liquid wax as material. After pouring the liquid wax into the moulds on the machine, cycle cold water inside the machine will cool down and shape the liquid wax. Then turn or press the handle beside the machine to push candle out. This is a customizable product, candle size, shape and moulds number can be designed according to customer’s requirements.

Manual Candle Making Machine Features:

1.This machine can make simple common daily lighting candle,extruded cylindrical candle.

2.Stainless steel candle mould tube can keep candle smooth and easy molding.

3.Seamless copper can keep corrosion resistance and fast cooling and to prevent rust.

4.One people can operate 4 units candle machine.

5.Simple construction, small size, high mould precision.

Candle size (mm)	Candle weight (g/pcs)	Number of candles/ each mold	Production frequency (pcs/h)	Capacity (pcs/h)
14*12.5*200	24	80/160	4	320/640
16*14*203	30	80/160	4	320/640
18*16.5*205	41	80/160	4	320/640
20*18.5*250	65	70/140	3	210/420
22*20.5*220	66	70/140	3	210/420
14*12.5*200	24	160/240/320/400	4	640/960/1280/1600
16*14*203	30	160/240/320/400	4	640/960/1280/1600
18*16.5*205	41	160/240/320/400	4	640/960/1280/1600
20*18.5*250	65	140/210/280/350	3	420/630/840/1050
22*20.5*220	66	140/210/280/350	3	420/630/840/1050
14*12.5*200	24	252/336/420	4	1008//1344/1680
16*14*203	30	228/304/380	4	912/1216/1520
18*16.5*205	41	210/280/350	3	630/840/1050
20*18.5*250	65	192/256/320	3	576/768/960
22*20.5*220	66	180/240/300	3	540/720/900



The connect of the Manual Candle Making Machine :

The machine is transported as a complete machine, no additional steps are required for installation. The machine needs to remove the outer wooden packaging and place it in a suitable place in the factory. It is recommended to be closer to the waxing device.

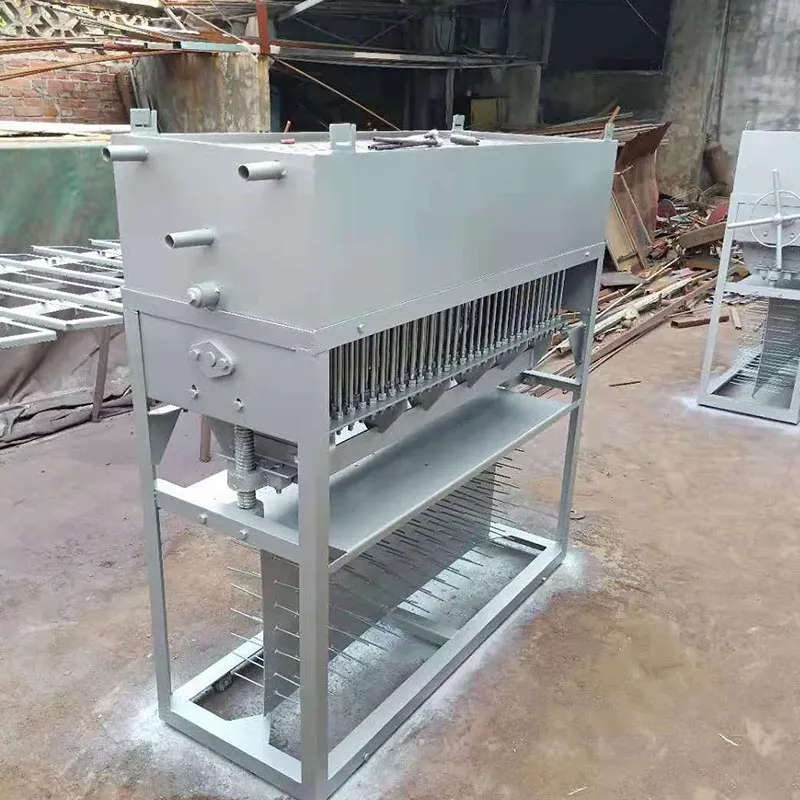

The machine needs to be connected to the water tank, just install the cooling water as shown in the figure below. In order to achieve the cooling water to quickly cool down the candle, to achieve a higher production efficiency.

The operating of the small candle machine :

1. Put the machine flat on the ground. Put oil in each mould (for lubrication, apply oil after waxing several times on the mould). Play a mold lubrication effect.

2. Thread the wax thread. The wax thread needs to be threaded and placed on the machine before the machine works. After the wax thread passes through the spool once until the spool is used up, change to the next spool and repeat the operation steps.

3. Connect the circulating water before the machine works. To achieve the effect of cold water circulation cooling, if it is not connected to the circulating water machine, it can also be used, and the production efficiency and candle output rate will be reduced during use.

4. Use a wax-melting pot or a wax-melting device to turn the wax into a liquid, and pour it evenly on the candle machine.

5. Wait for the candle to cool down. Generally, a candle needs to wait for a cooling time of 15-20 minutes, depending on the local temperature and factory temperature, there will be errors.

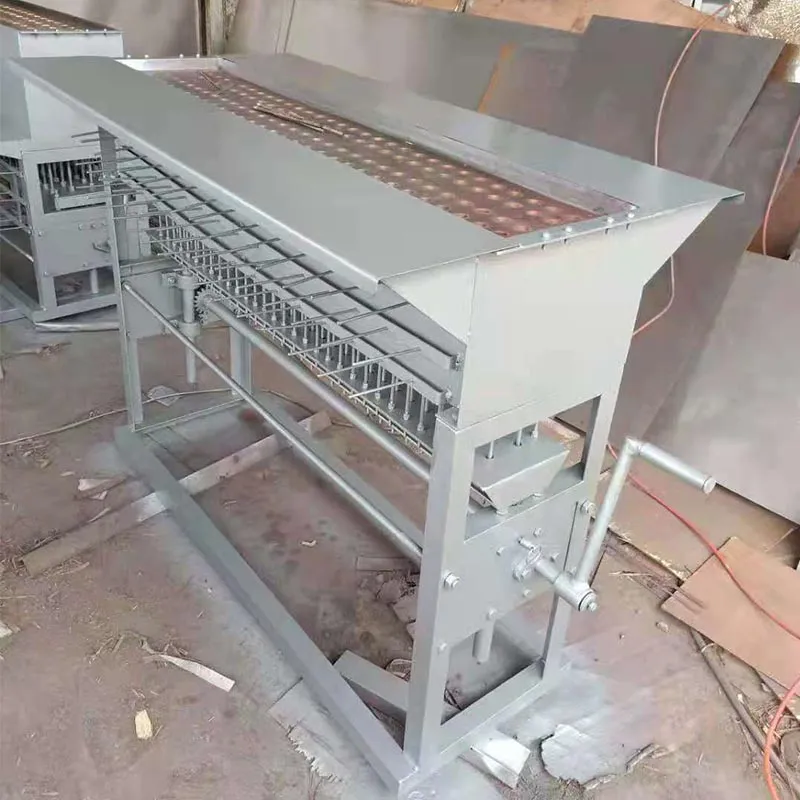

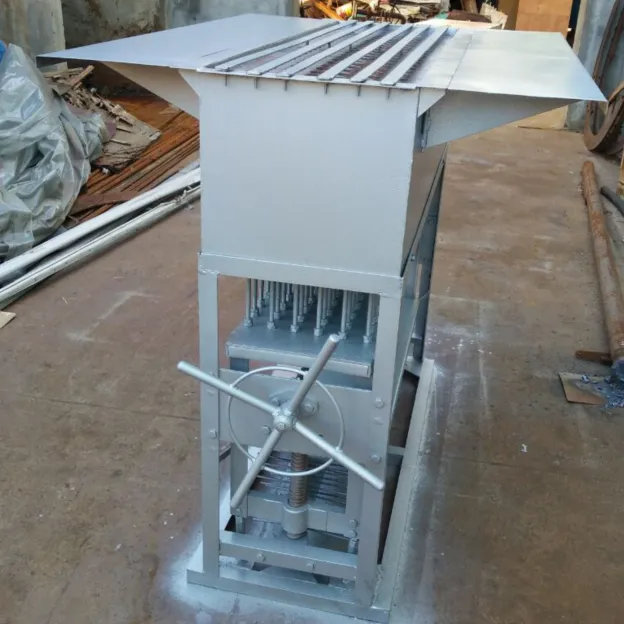

6. After the candle has cooled down, shake the wheel to remove the wax. After the candle is removed, use a shovel to remove the candle, enter the next pouring, and cycle this step for production.

Remark：

Manual pillar candle making machine is especially suitable for the Beginners. For candle producers who want to produce many kinds of candles, manual candle machines are the first choice too. They are the most common machines for making candles now. Although they are called manual machines, they can provide big output capacity as well. With an investment of less than USD 10,000, a small-scale candle plant can have 3-8 machines which can produce 8,000-30,000 candles per Day (8 working hours). These candles can be in different kinds

and styles. Just 2 or 3 persons can easily handle these manual candle making machine.
